CARGO MULTICOPTERS
Heavy-Payload Multirotor UAVs
Our high payload capacity Modular Cargo Aerial Platform (MCAP) is a multi-rotor Vertical Take-Off and Landing (VTOL) multi-copter type Unmanned Aerial Vehicles (UAV) designed to carry large payloads and cargo across short distances. The aircraft can be adapted for various transportation related designations such as cargo shipping, emergency medevac or even search & rescue missions. Alternatively, it can be outfitted with fully customisable and specialised heavy payloads depending on the exact needs of the End User.

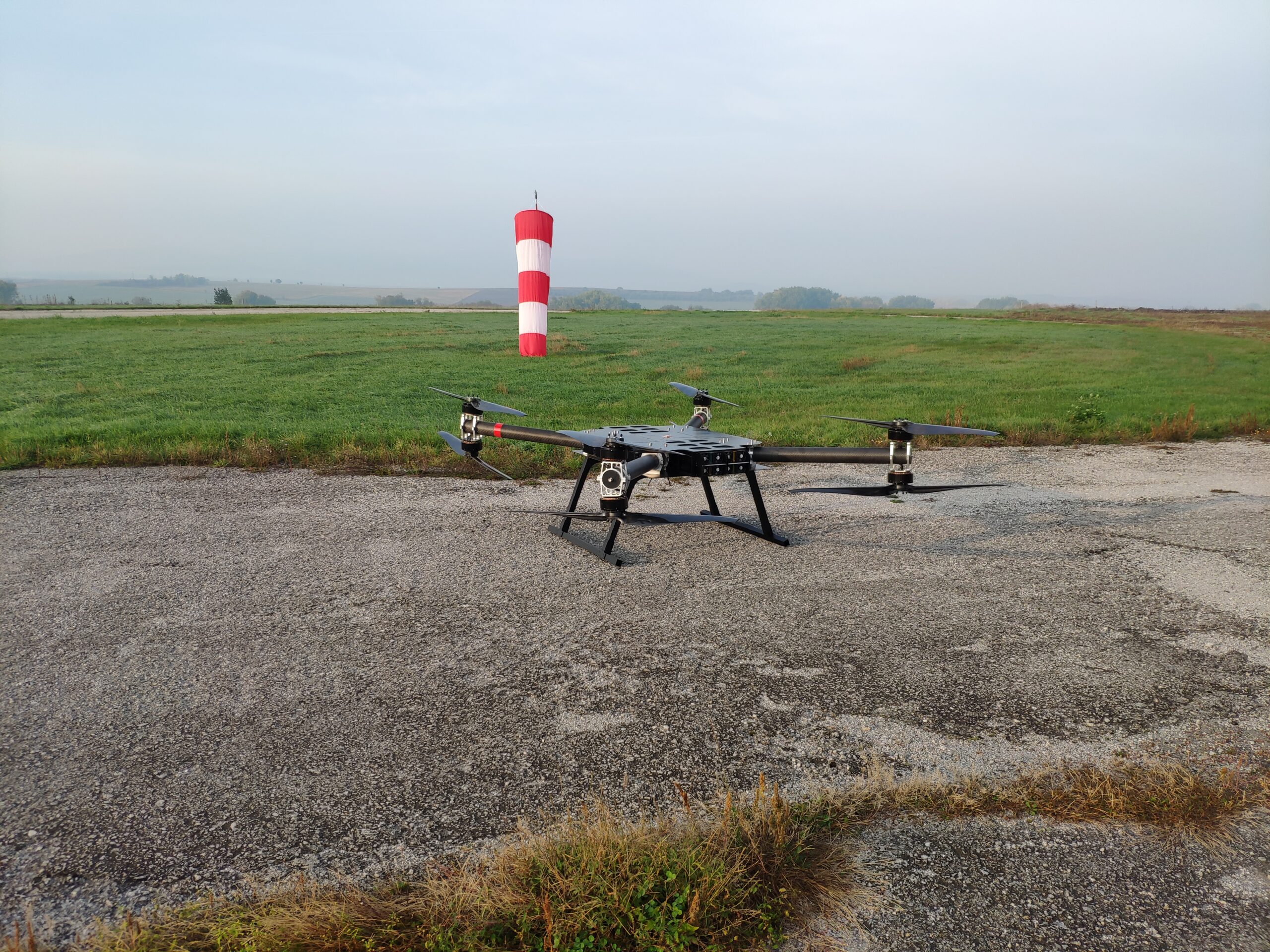

The MCAP-100 is capable of bearing loads of up to 100 kilograms with x4 rotor arms and x8 electric motors outfitted with large propellers.

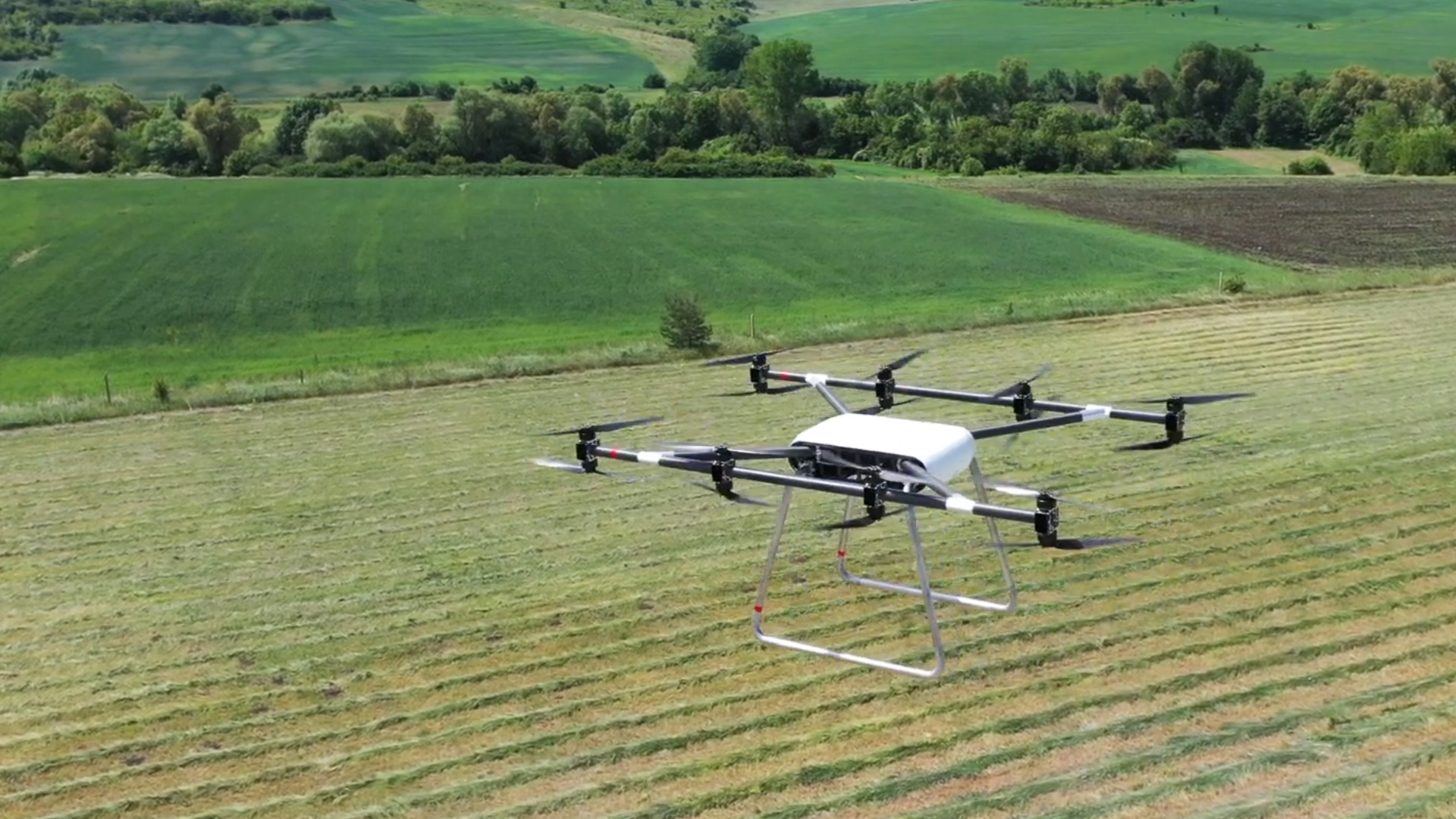

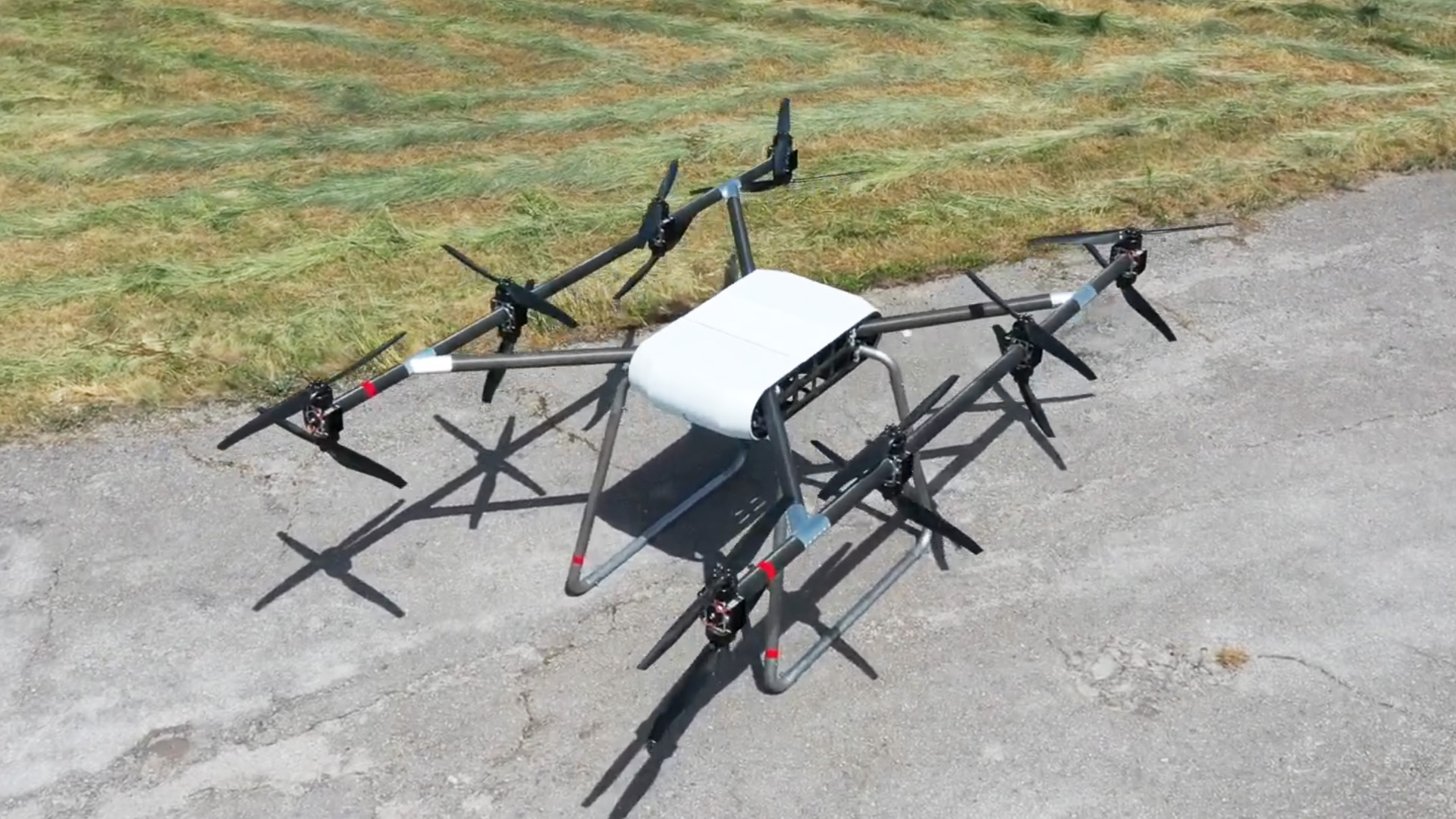

The MCAP-200 features twice the carrying capacity at 200 kilograms with x8 mounting points, each outfitted with two motors for a total of x16 independent propellers.
Each UAVs operates electrically with hot-swappable smart battery packs that can be changed instantly and is driven by our in-house developed autopilot software & hardware.
High Payload Capacity
Cargo Transportation
Vertical Take-Off & Landing
Autonomous Operation
Hot-Swappable Battery Packs
Proprietary
Software & Hardware
- Technical Characteristics
| Specification | MCAP-100 | MCAP-200 |
|---|---|---|
| Flight Endurance | 30 min (full load) | 20 min (full load) |
| Flight Range | 15km (full load) | 15km (full load) |
| Maximum Speed | 70km/h | |
| Wingspan | 3.7m x 3.4m | 6.3m x 4.3m |
| MTOW | 260kg | 560kg |
| Weight | 13.5kg | 19kg |
| Payload Capacity | 100kg | 200kg |
| Battery Packs | X4 (80kg) | X8 (160kg) |
