SKADS
Soft-Kill Anti-Drone System
The Soft-Kill Anti-Drone System (SKADS) is designed to disable hostile Unmanned Aerial Vehicles (UAVs) by disrupting their communication channels by way of electronic signal disruption devices, also known as jammers. Our systems can disable all Global Navigation Satellite System (GNSS) constellations, all Mobile/Cellular Frequency Bands, Radio Signals and Wireless Signals, creating large areas of denial in an omnidirectional jamming sphere or via a directed long-range jamming beam.

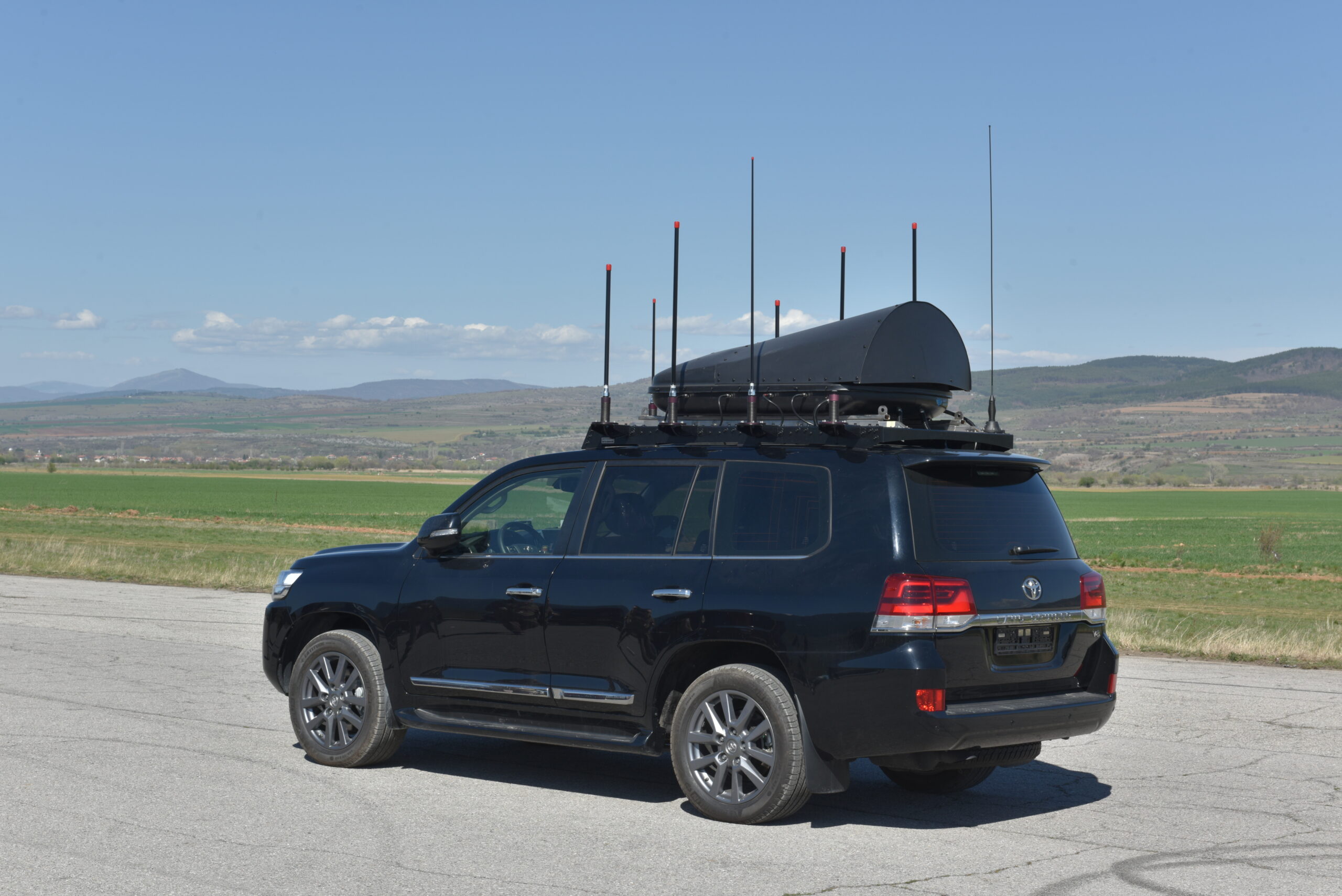

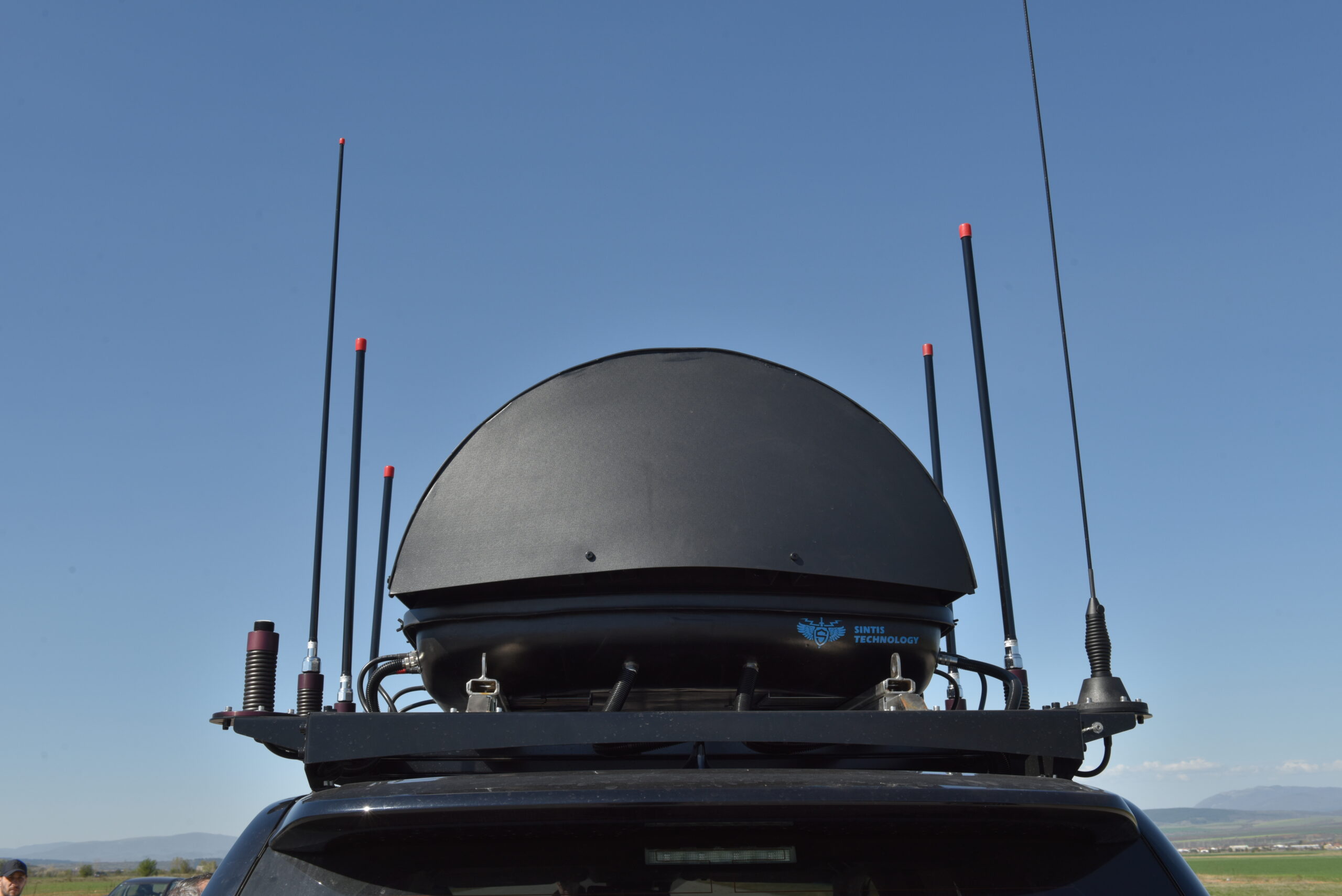

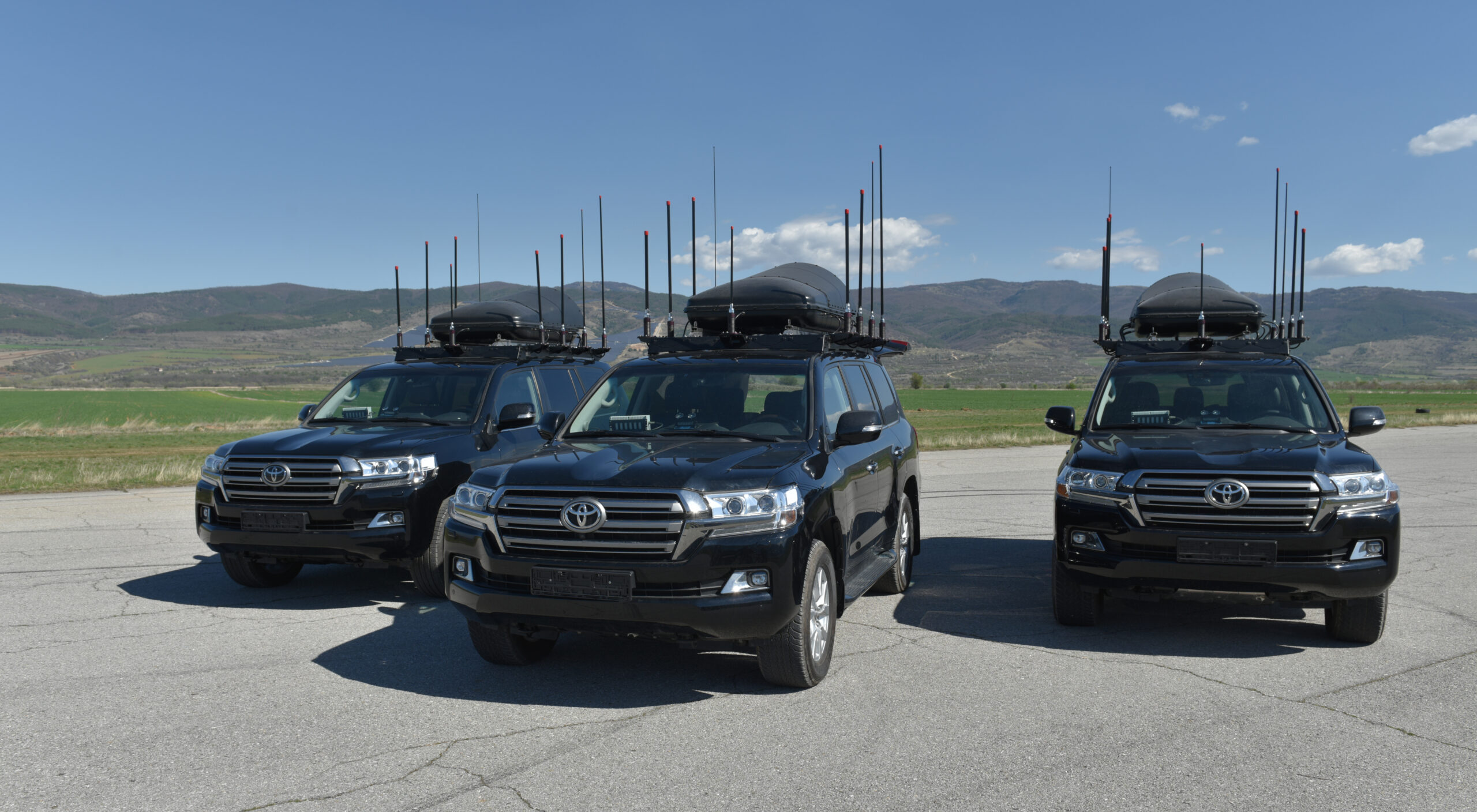

Our jammer systems are completely tailor made in accordance with the end-user’s requirements and can be configured as man-portable, vehicle mounted or stationary installation. They can be part of complex defensive installations such as our Multi-Layer Hybrid Anti-Drone System (ML-HADS) [backlink] or designed as an independent, self-contained Soft-Kill Anti-Drone System (SKADS) [backlink] in a semi-mobile container configuration.
Disrupts all UAV communication channels
Selective and adjustable jamming ranges
Tailor made to the end-user's specifications
Fully scalable for critical infrastructure security
Full integration into complete C-UAV system
Portable, Mobile, Semi-Fixed or Stationary
- Technical Characteristics
Jamming Range
1.5 MHz – 7000 MHz (Custom)
GNSS Jamming
GPS, GLONASS, GALILEO, BEIDOU, QZSS & IRNSS
Cellular Jamming
GSM, 2G, 3G, 4G, LTE & 5G
Wireless Jamming
860/900 MHz, 2.4 GHz, 3.6 GHz, 4.9 GHz, 5 GHz, 5.9 GHz, 6 GHz
Effective Range
Up to 8km

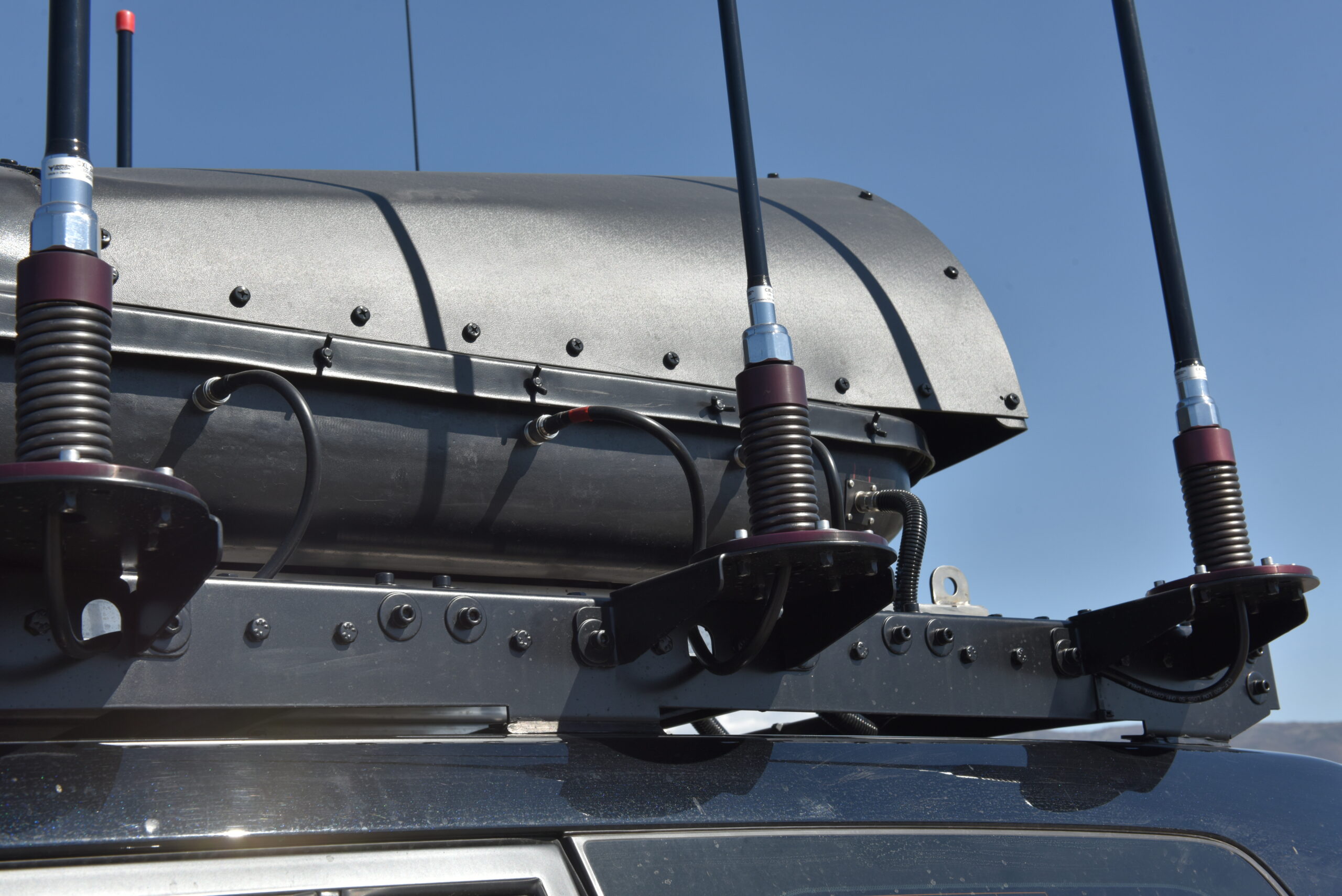

Antenna Type
Omnidirectional or Directional
Jamming Type
Active or Reactive
